Build Your Own RFM2 - 30" Wide Cabinet
Product Overview

R. F. Mote Build Your Own 30 inch wide cabinets typical configuration includes:

 ✔ Welded steel frame with 3,000 lb. static load (UL2416)
 ✔ Solid top panel with four large (4.5" x 9") brush covered cable access ports
 ✔ Perforated front and rear doors (78% perforation) each with lockable door handles
 ✔ Two solid, lockable, removable side panels
 ✔ Two pairs of fully adjustable (front-to-back) punched mounting rails
 ✔ Levelling feet and hardware package
3D Product Animations



Click to view 3D animation - Coming Soon!
Resources

Datasheet Fiche Techinique
MasterFormat Specifications Specifications MasterFormat
Installation Instructions Instructions d'installation

Product Video Video du produit

CAD Drawings (dxf and pdf format)

For detailed CAD drawings, please click on the part numbers listed below for the drawings related to that specific cabinet size / configuration.





• UL 2416 Listed
• UL Rated for up to 3000 LBS Static Load

OPTIONS FOR CABINETS
Cabinet Frames 30" Wide




FRAME - 48" DEPTH
PART NUMBER WIDTH DEPTH HEIGHT RU's USABLE D
RFM2-304852-F-B 30.00 48.150 97.125 52U 45.625
RFM2-304848-F-B 30.00 48.150 90.125 48U 45.625
RFM2-304845-F-B 30.00 48.150 84.875 45U 45.625
RFM2-304842-F-B 30.00 48.150 80.00 42U 45.625
RFM2-304830-F-B 30.00 48.150 59.00 30U 45.625
RFM2-304817-F-B 30.00 48.150 35.00 17U 45.625
FRAME - 42" DEPTH
PART NUMBER WIDTH DEPTH HEIGHT RU's USABLE D
RFM2-304252-F-B 30.00 42.150 97.125 52U 39.625
RFM2-304248-F-B 30.00 42.150 90.125 48U 39.625
RFM2-304245-F-B 30.00 42.150 84.875 45U 39.625
RFM2-304242-F-B 30.00 42.150 80.00 42U 39.625
RFM2-304230-F-B 30.00 42.150 59.00 30U 39.625
RFM2-304217-F-B 30.00 42.150 35.00 17U 39.625
FRAME - 36" DEPTH
PART NUMBER WIDTH DEPTH HEIGHT RU's USABLE D
RFM2-303648-F-B 30.00 36.150 90.125 48U 33.625
RFM2-303645-F-B 30.00 36.150 84.875 45U 33.625
RFM2-303642-F-B 30.00 36.150 80.00 42U 33.625
RFM2-303630-F-B 30.00 36.150 59.00 30U 33.625
RFM2-303617-F-B 30.00 36.150 35.00 17U 33.625
FRAME - 30" DEPTH
PART NUMBER WIDTH DEPTH HEIGHT RU's USABLE D
RFM2-303048-F-B 30.00 30.150 90.125 48U 27.625
RFM2-303045-F-B 30.00 30.150 84.875 45U 27.625
RFM2-303042-F-B 30.00 30.150 80.00 42U 27.625
RFM2-303030-F-B 30.00 30.150 59.00 30U 27.625
RFM2-303017-F-B 30.00 30.150 35.00 17U 27.625
FRAME - 24" DEPTH
PART NUMBER WIDTH DEPTH HEIGHT RU's USABLE D
RFM2-302448-F-B 30.00 24.150 90.125 48U 21.625
RFM2-302445-F-B 30.00 24.150 84.875 45U 21.625
RFM2-302442-F-B 30.00 24.150 80.00 42U 21.625
RFM2-302430-F-B 30.00 24.150 59.00 30U 21.625
RFM2-302417-F-B 30.00 24.150 35.00 17U 21.625

RFM2 Cabinet Frames provides a sturdy, cost-effective solution for supporting rack-mount network, computer server and
data storage equipment in data centers, computer equipment rooms and other IT facilities.
Mounting Angles

Mounting Angles


19" MOUNT - TAPPED AND SQUARE HOLE
TAPPED #10-32 - 19" EIA. SQUARE HOLE - 19" EIA. HEIGHT RU's
RFM2-1952-MA-30-PR RFM2-1952-MA-SQ-30-PR 97.00 52U
RFM2-1948-MA-30-PR RFM2-1948-MA-SQ-30-PR 90.00 48U
RFM2-1945-MA-30-PR RFM2-1945-MA-SQ-30-PR 85.00 45U
RFM2-1942-MA-30-PR RFM2-1942-MA-SQ-30-PR 80.00 42U
RFM2-1930-MA-30-PR RFM2-1930-MA-SQ-30-PR 59.00 30U
RFM2-1917-MA-30-PR RFM2-1917-MA-SQ-30-PR 35.00 17U

Mounting Angles (Tapped and Square Hole) are sold in pairs.

[PDF]  Install / Assemble: [DOWNLOAD]

Cabinet Doors





LEFT HAND HINGE MOUNT
PERFORATED ACRYLIC SOLID LOUVERED HEIGHT RU's
RFM2-3052-1-P-LH-B RFM2-3052-1-LH-B RFM2-3052-2-LH-B RFM2-3052-3-LH-B 97.00 52U
RFM2-3048-1-P-LH-B RFM2-3048-1-LH-B RFM2-3048-2-LH-B RFM2-3048-3-LH-B 90.00 48U
RFM2-3045-1-P-LH-B RFM2-3045-1-LH-B RFM2-3045-2-LH-B RFM2-3045-3-LH-B 85.00 45U
RFM2-3042-1-P-LH-B RFM2-3042-1-LH-B RFM2-3042-2-LH-B RFM2-3042-3-LH-B 80.00 42U
RFM2-3030-1-P-LH-B RFM2-3030-1-LH-B RFM2-3030-2-LH-B RFM2-3030-3-LH-B 59.00 30U
RFM2-3017-1-P-LH-B RFM2-3017-1-LH-B RFM2-3017-2-LH-B RFM2-3017-3-LH-B 35.00 17U
RIGHT HAND HINGE MOUNT
PERFORATED ACRYLIC SOLID LOUVERED HEIGHT RU's
RFM2-3052-1-P-RH-B RFM2-3052-1-RH-B RFM2-3052-2-RH-B RFM2-3052-3-RH-B 97.00 52U
RFM2-3048-1-P-RH-B RFM2-3048-1-RH-B RFM2-3048-2-RH-B RFM2-3048-3-RH-B 90.00 48U
RFM2-3045-1-P-RH-B RFM2-3045-1-RH-B RFM2-3045-2-RH-B RFM2-3045-3-RH-B 85.00 45U
RFM2-3042-1-P-RH-B RFM2-3042-1-RH-B RFM2-3042-2-RH-B RFM2-3042-3-RH-B 80.00 42U
RFM2-3030-1-P-RH-B RFM2-3030-1-RH-B RFM2-3030-2-RH-B RFM2-3030-3-RH-B 59.00 30U
RFM2-3017-1-P-RH-B RFM2-3017-1-RH-B RFM2-3017-2-RH-B RFM2-3017-3-RH-B 35.00 17U
SPLIT PERFORATED
PART NUMBER HEIGHT RU's
RFM2-3052-1-P-DD-B 97.00 52U
RFM2-3048-1-P-DD-B 90.00 48U
RFM2-3045-1-P-DD-B 85.00 45U
RFM2-3042-1-P-DD-B 80.00 42U
RFM2-3030-1-P-DD-B 59.00 30U
RFM2-3017-1-P-DD-B 35.00 17U

• Various cabinet door options available

 Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]
Side Panels




SOLID SIDE PANEL
48" DEPTH 42" DEPTH 36" DEPTH 30" DEPTH 24" DEPTH HEIGHT RU's
RFM2-4852-4-B RFM2-4252-4-B N/A N/A N/A 97.00 52U
RFM2-4848-4-B RFM2-4248-4-B RFM2-3648-4-B RFM2-3048-4-B RFM2-2448-4-B 90.00 48U
RFM2-4845-4-B RFM2-4245-4-B RFM2-3645-4-B RFM2-3045-4-B RFM2-2445-4-B 85.00 45U
RFM2-4842-4-B RFM2-4242-4-B RFM2-3642-4-B RFM2-3042-4-B RFM2-2442-4-B 80.00 42U
RFM2-4830-4-B RFM2-4230-4-B RFM2-3630-4-B RFM2-3030-4-B RFM2-2430-4-B 59.00 30U
RFM2-4817-4-B RFM2-4217-4-B RFM2-3617-4-B RFM2-3017-4-B RFM2-2417-4-B 35.00 17U
PERFORATED SIDE PANEL
48" DEPTH 42" DEPTH 36" DEPTH 30" DEPTH 24" DEPTH HEIGHT RU's
RFM2-4852-4-P-B RFM2-4252-4-P-B N/A N/A N/A 97.00 52U
RFM2-4848-4-P-B RFM2-4248-4-P-B RFM2-3648-4-P-B RFM2-3048-4-P-B N/A 90.00 48U
RFM2-4845-4-P-B RFM2-4245-4-P-B RFM2-3645-4-P-B RFM2-3045-4-P-B N/A 85.00 45U
RFM2-4842-4-P-B RFM2-4242-4-P-B RFM2-3642-4-P-B RFM2-3042-4-P-B N/A 80.00 42U
RFM2-4830-4-P-B RFM2-4230-4-P-B RFM2-3630-4-P-B RFM2-3030-4-P-B N/A 59.00 30U
RFM2-4817-4-P-B RFM2-4217-4-P-B RFM2-3617-4-P-B RFM2-3017-4-P-B N/A 35.00 17U

Used to close off the ends of rows or on either of a single rack installation, side panels provide protection
of the IT equipment and related cabling and provide a professional 'finished' look.

 Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]
Finger Style Cable Managers - Vertical







FINGER STYLE - 5" DEPTH
FITS 30 INCH WIDE CAB FITS 36 INCH WIDE CAB WIDTH RU's
RFM2-552-VCM-F-B RFM2-552-36-VCM-F-B 5.00 52U
RFM2-548-VCM-F-B RFM2-548-36-VCM-F-B 5.00 48U
RFM2-545-VCM-F-B RFM2-545-36-VCM-F-B 5.00 45U
RFM2-542-VCM-F-B RFM2-542-36-VCM-F-B 5.00 42U
RFM2-530-VCM-F-B RFM2-530-36-VCM-F-B 5.00 30U
RFM2-517-VCM-F-B RFM2-517-36-VCM-F-B 5.00 17U
FINGER STYLE - 7" DEPTH
FITS 30 INCH WIDE CAB FITS 36 INCH WIDE CAB WIDTH RU's
RFM2-752-VCM-F-B RFM2-752-36-VCM-F-B 7.00 52U
RFM2-748-VCM-F-B RFM2-748-36-VCM-F-B 7.00 48U
RFM2-745-VCM-F-B RFM2-745-36-VCM-F-B 7.00 45U
RFM2-742-VCM-F-B RFM2-742-36-VCM-F-B 7.00 42U
RFM2-730-VCM-F-B RFM2-730-36-VCM-F-B 7.00 30U
RFM2-717-VCM-F-B RFM2-717-36-VCM-F-B 7.00 17U

Provides vertical cable management with plastic T-shaped cable guides and openings that align with

Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]
Combination PDU and Cable Lashing Brackets




PART NUMBER WIDTH DESCRIPTION
RFM2-PCM-S-B 3.00 PDU Cable Manager, Single-sided
RFM2-PCM-D-B 5.50 PDU Cable Manager, Double-sided

Unique Combination PDU / Cable Lashing Brackets that can be installed flat or at 90 degrees.

Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]

[PDF]  Assembly Instructions:[DOWNLOAD]


Vertical Cable Trough




PART NUMBER WIDTH HEIGHT
RFM-659-VCT 6.00 59.00
RFM-635-VCT 6.00 35.00
RFM-459-VCT 4.00 59.00
RFM-435-VCT 4.00 35.00

• Supports slack cable, installs flat onto rail guides.

 Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]
D-Ring




PART NUMBER DEPTH WIDTH (ADJ)
RFM-DR-ADJ 3.25 4.75 - 8.25

Supports Slack Cables: Adjustable width, installs onto vertical cable management.

Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]


Vertical and Horizontal Grounding Bars








CABINET GROUNDING BARS - VERTICAL MNT.
PART NUMBER WIDTH FITS
RFM2-GB-UNI 1.00 52U, 48U, 45U
RFM2-GB-42 1.00 42U
RFM2-GB-30 1.00 30U
RFM2-GB-17 1.00 17U


RACK GROUNDING BARS - VERTICAL MOUNT
PART NUMBER WIDTH FITS
RFM-GBR-UNI 1.00 48U, 44U
RFM-GBR-38 1.00 38U
RFM-GBR-24 1.00 24U


GROUNDING BARS - HORIZONTAL MOUNT
PART NUMBER WIDTH FITS
RFM-HGB-19 1.00 19" EIA


THREADED INSULATOR KIT FOR CABINET GB
PART NUMBER QTY. USE WITH
RFM-GB-4-ISOKIT 4 RFM2-GB-UNI,
RFM2-GB-42
RFM-GB-3-ISOKIT 3 RFM2-GB-30
RFM-GB-2-ISOKIT 2 RFM2-GB-17
THREADED INSULATOR KIT FOR RACK GBR
PART NUMBER QTY. USE WITH
RFM-GB-3-ISOKIT 3 RFM-GBR-UNI
RFM-GB-3-ISOKIT 3 RFM-GBR-38
RFM-GB-2-ISOKIT 2 RFM-GBR-24
THREADED INSULATOR KIT FOR HGB-19
PART NUMBER QTY. USE WITH
RFM-GB-2-ISOKIT 2 RFM-HGB-19

Grounding bars for both RFM2 Cabinets or RFM Racks. Isolator kits also listed.

 Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]

[PDF]  Install / Assemble (RFM-GBR-UNI):[DOWNLOAD]

PDF]  Install / Assemble (RFM-GBR-38):[DOWNLOAD]
Aluminum Lacing Bar




PART NUMBER WIDTH HEIGHT FITS WITH
RFM-ALB-77 1.00 73.75 45U, 48U, 52U

Aluminum lacing bar for securing cable slack.

ACCESSORIES FOR CABINETS

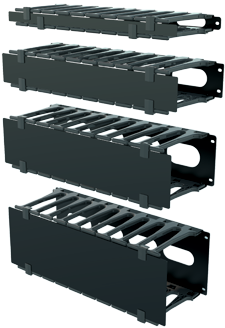

Finger Style Cable Managers - Horizontal




PART NUMBER DEPTH RMU (U) COLOUR
RFM2-191-HCM-F 4.38 1U BLACK
RFM2-192-HCM-F 4.38 2U BLACK
RFM2-193-HCM-F 4.38 3U BLACK

• Provides neat cable routing for premise cables
• Finger style design
• Available in 1U, 2U, and 3U heights
Cable Managers - Horizontal




PART NUMBER DEPTH RU'S
RFM-191D-HCM 2.40 1U
RFM-192D-HCM-TD 2.40 2U
RFM-194D-HCM-TD 2.40 4U

Manage all of your network cabling neatly, regardless of cable volumes. These horizontal managers
are available in 1U, 2U, and 4U spacing and feature removable door.

 Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]


Finger Style Cable Managers - Horizontal






PART NUMBER DEPTH RU'S
RFM-191D-HCM-F 3.00 1U
RFM-192D-HCM-F 3.00 2U

Manage all of your network cabling neatly, regardless of cable volumes. These fingered
horizontal managers are available in 1U and 2U spacing and feature removable door.

 Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]


Cable Managers - Horizontal







PART NUMBER DEPTH
RFM-0U-HCM-19 3.00
RFM-0U-HCM-19-5 5.00

Manage all of your network cabling neatly, regardless of cable volumes. These horizontal
managers are available in 3" and 5" depths.

 Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]
Front to Back Cable Trough






PART NUMBER DEPTH HEIGHT
RFM2-FTB-1831-B 3.00 73.75

Supports Cables: Front to Back of Cabinet

 Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]
Overhead Horizontal Cable Trough For RFM2 Cabinets: High Density




PART NUMBER FITS DESCRIPTION
RFM2-HCT-30-12 30" WIDE CABINET CABLE TROUGH
RFM2-HCT-24-12 24" WIDE CABINET CABLE TROUGH
RFM-HCT-J-0 RFM2-HCT-XX-12 JOINER (PAIR)
RFM2-HCTE-C-12 RFM2-HCT-XX-12 END CAP

Manage all of your network cabling neatly, regardless of cable volumes.
12" Depth HCT for RFM2 Cabinets. Cable trough joiner sold in pairs.
Cabinet Shelf: 4 Point Rack Mounting






PART NUMBER ADJ. MOUNT DEPTH LOAD CAPACITY
RFM-1726-CFS-4 6.00 ~ 33.475 200LBS
RFM-1719-CFS-4 6.00 ~ 26.625 200LBS
RFM-1716-CFS-4 * 6.00 ~ 23.625 200LBS

Shelf Fits: Cabinets and Four Post Racks. 19" Rack Mount.

* RFM-1716-CFS-4 is non-vented.

Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]
Cabinet Shelf: 4 Point Rack Mounting






PART NUMBER ADJ. MOUNT DEPTH LOAD CAPACITY
RFM-2440-CFS-4 23.75 - 45.50 400LBS

Shelf Fits: Cabinets and Four Post Racks. 19" Rack Mount.

 Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]
Cabinet Shelf: 4 Point Rack Mounting, Retractable






PART NUMBER WIDTH DEPTH LOAD CAPACITY
RFM-1726-CRS-4-1U 17.00 26.00 100LBS

Fully Extendable/Retracable Shelf. 19" Rack Mount.

 Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]
Air Dam Kit




36" WIDE CABINET 30" WIDE CABINET 24" WIDE CABINET RU's
RFM2-ADK-3652-B RFM2-ADK-3052-B RFM2-ADK-2452-B 52U
RFM2-ADK-3648-B RFM2-ADK-3048-B RFM2-ADK-2448-B 48U
RFM2-ADK-3645-B RFM2-ADK-3045-B RFM2-ADK-2445-B 45U
RFM2-ADK-3642-B RFM2-ADK-3042-B RFM2-ADK-2442-B 42U
RFM2-ADK-3630-B RFM2-ADK-3030-B RFM2-ADK-2430-B 30U
RFM2-ADK-3617-B RFM2-ADK-3017-B RFM2-ADK-2417-B 17U

• The Air Dam Kit attaches to the front mounting rails, providing a complete seal around
   mounted equipment, ensuring complete airflow isolation and eliminating bypass airflow.
• The Air Dam Kit also provides seals above and below mounted equipment.

Brush Covers QTY FITS
RFM2-ADBK 8 RFM2-ADK-30xx-B
RFM2-ADK-36xx-B

• Set of 8 brush covers that conceal cable opening in the equipment mounting rails to block airflow around equipment.

 Product Resources

 [PDF]  RFM2-ADK Product Data Sheet:[DOWNLOAD]

[PDF]  RFM2-ADBK Product Data Sheet:[DOWNLOAD]


Exhaust Fans 4"



    (shown with optional RFM-FAN-FILTER)


PART NUMBER FANS AIRFLOW PLUG
RFM2-2-FAN-CAB 2 220 CFM 5-15P
RFM2-4-FAN-CAB 4 440 CFM 5-15P

This item is for RFM2 Cabinets only.

RFM2 4” Exhaust Fans:
• 115VAC 50/60HZ 24/22W (Standard per each unit)
   (230VAC 50/60HZ available upon request)
• Plug Type: 5-15P
• Fits RFM2 Cabinets only (36”, 31.5", 30” & 24” Width Cabinets)
• Total Air Flow: 220 CFM (2-Fan), 440CFM (4-Fan)

[PDF]  DUAL Fan Assembly Instructions: [DOWNLOAD]

[PDF] FOUR Fan Assembly Instructions: [DOWNLOAD]


Casters and Caster Pads




PART NUMBER DEPTH FITS*
RFM2-2C-B-30 2.5 30" W CABINET
RFM2-2C-B-24 2.5 24" W CABINET

* This item is for RFM2 Cabinets only.

[PDF]  Caster Pad Assembly Instructions: [DOWNLOAD]



Jumper Kit




PART NUMBER LENGTH WIRE
RFM-JK-60 60" (1.54M) 6 AWG
Kit assembly consists of:
• 6 Awg Wire
• 60” Cable Length (1.54 M)
• includes (1x) 1/4-20 Keps Nut
• includes (1x) #10-32 Keps Nut
• Crimped One End: 1/4” Lug Connector
(45 Degree Angle, 2 Eye Holes)

Grounding wire / jumper kit

Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]
Hardware Package




PART NUMBER DESCRIPTION
RFM-CN Qty 24 x 1/4-20 Cage Nuts and 3/4” Screws
RFM-CN100 Qty 96 x 1/4-20 Cage Nuts and 3/4” Screws
RFM-CN10-32 Qty 24 x #10-32 Cage Nuts and 1/2” Screws
RFM-CN 10-32100 Qty 96 x #10-32 Cage Nuts and 1/2” Screws
RFM-10-32 Qty 100 x #10-32 x 1/2" Screws
RFM-GK Ganging Kit includes:
• Qty 4 x 5/16-18 x 1" Hex Head Bolt
• Qty 4 x 5/16-18 Keps Nut
• Qty 4 x 5/16" Flat Washer

Hardware package for any cabinet or rack installation.
