Pre-Configured Wall Mount Cabinet (24" and 30" Wide)
| Product Overview |
 Pre-Configured 24 and 30 inch wide wall mount cabinets typical configuration includes: acrylic front door (lockable), mounting rails, covered cable openings, and hardware package. Offered in Black or White, and 12U, 18U, and 25U heights. Optional 6 inch deep cabinet extender also available. ✔ Acrylic front door (lockable) ✔ Mounting rails ✔ Covered cable openings ✔ Hardware Package ✔ Optional 6 inch deep cabinet extender
|
| 3D Product Animations |
Click to view 3D animation |
| Resources | ||
 |
Datasheet | Fiche Techinique |
 |
Installation Instructions | Instructions d'installation |
| CAD Drawings (dxf and pdf format) |
For detailed CAD drawings, please click on the part numbers listed below for the drawings related to that specific cabinet size / configuration. |
Pre-Configured Wall Mount Cabinet

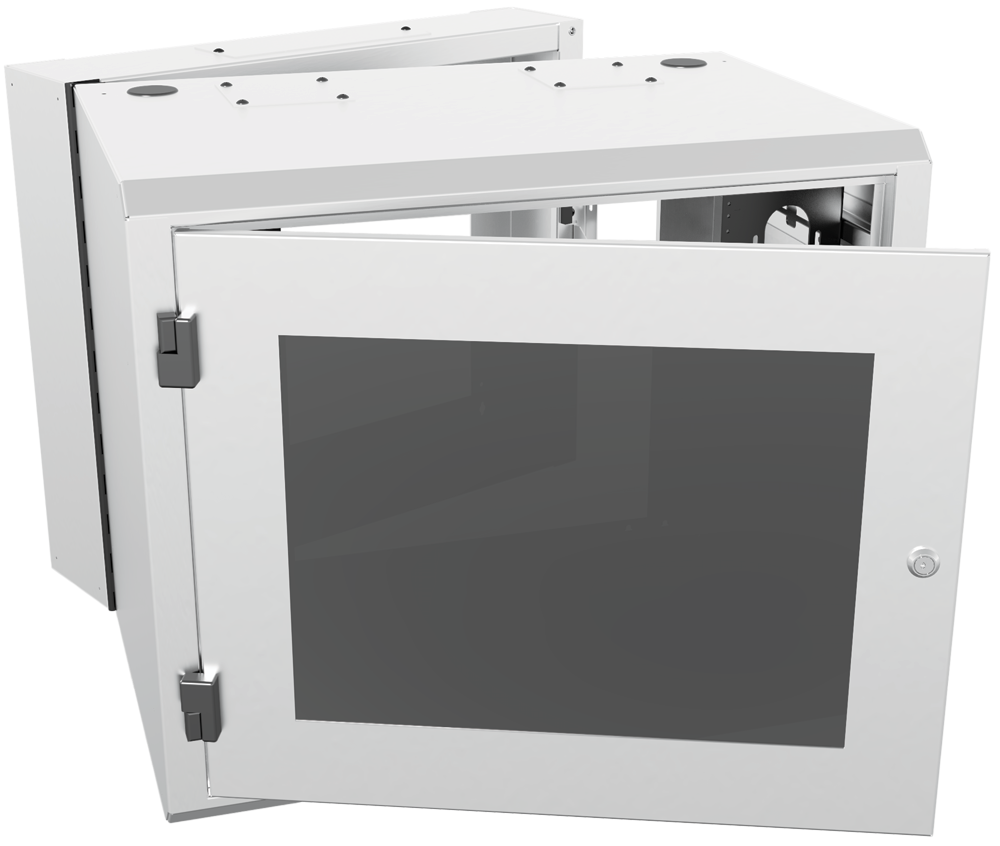

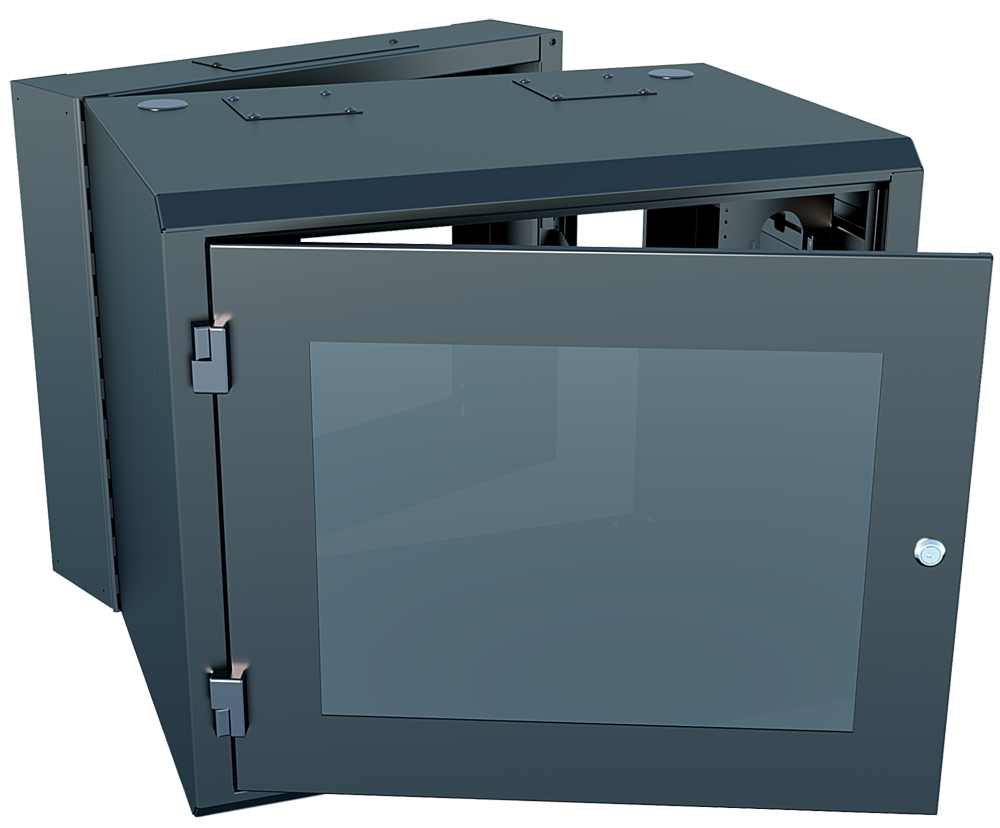

Wall mount cabinet (shown with optional cabinet extender) |

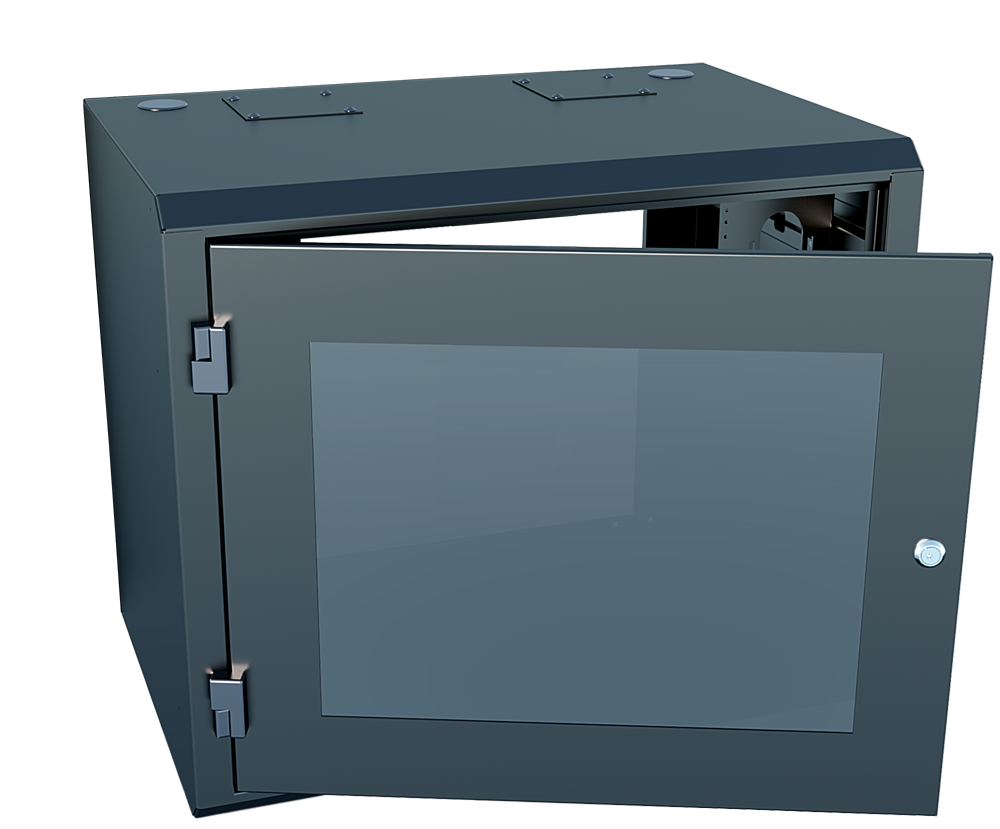

Wall mount cabinet (no extender shown) |

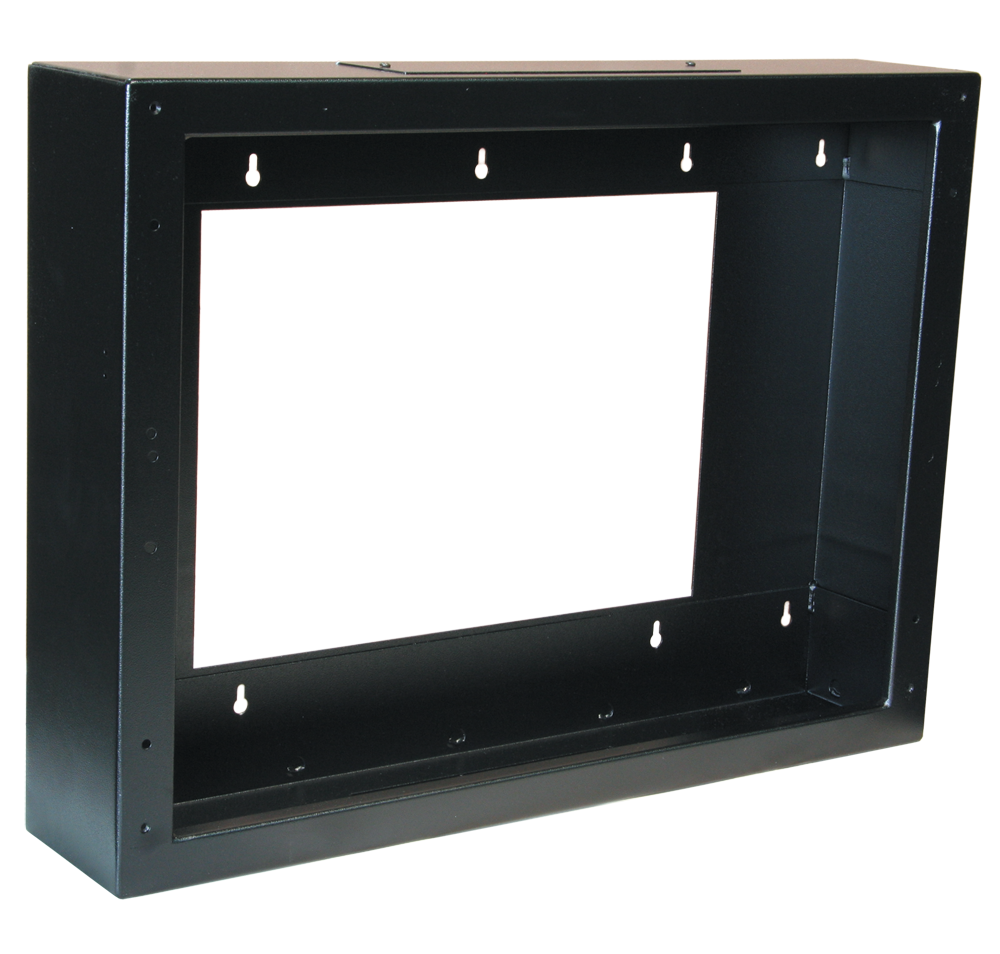

Wall mount cabinet extender |
Swing out wall mount cabinet, includes: acrylic front door, body, rear extension,
and one pair of mounting rails. Colour is Black or White.
| SWING OUT WALL MOUNT CABINET WITH EXTENDER - BLACK |
|||||
| PART NUMBER |
WIDTH | RMU | HEIGHT | DEPTH | DOOR |
| RFM-2425-WM-26X-B
|
24" | 12U | 25" | 26" | ACRYLIC |
| RFM-2436-WM-26X-B
|
24" | 18U | 36" | 26" | ACRYLIC |
| RFM-2448-WM-26X-B
|
24" | 25U | 48" | 26" | ACRYLIC |
| RFM-3025-WM-26X-B
|
30" | 12U | 25" | 26" | ACRYLIC |
| RFM-3036-WM-26X-B
|
30" | 18U | 36" | 26" | ACRYLIC |
| RFM-3048-WM-26X-B
|
30" | 25U | 48" | 26" | ACRYLIC |
| SWING OUT WALL MOUNT CABINET WITH EXTENDER - WHITE |
|||||
| PART NUMBER |
WIDTH | RMU | HEIGHT | DEPTH | DOOR |
| RFM-2425-WM-26X-W
|
24" | 12U | 25" | 26" | ACRYLIC |
| RFM-2436-WM-26X-W
|
24" | 18U | 36" | 26" | ACRYLIC |
| RFM-2448-WM-26X-W
|
24" | 25U | 48" | 26" | ACRYLIC |
| RFM-3025-WM-26X-W
|
30" | 12U | 25" | 26" | ACRYLIC |
| RFM-3036-WM-26X-W
|
30" | 18U | 36" | 26" | ACRYLIC |
| RFM-3048-WM-26X-W
|
30" | 25U | 48" | 26" | ACRYLIC |
Swing out wall mount cabinet, includes: acrylic front door, body,
and one pair of mounting rails. Colour is Black or White.
| SWING OUT WALL MOUNT CABINET (NO EXTENDER) - BLACK |
|||||
| PART NUMBER |
WIDTH | RMU | HEIGHT | DEPTH | DOOR |
| RFM-2425-WM-20-B
|
24" | 12U | 25" | 20" | ACRYLIC |
| RFM-2436-WM-20-B
|
24" | 18U | 36" | 20" | ACRYLIC |
| RFM-2448-WM-20-B
|
24" | 25U | 48" | 20" | ACRYLIC |
| RFM-3025-WM-20-B
|
30" | 12U | 25" | 20" | ACRYLIC |
| RFM-3036-WM-20-B
|
30" | 18U | 36" | 20" | ACRYLIC |
| RFM-3048-WM-20-B
|
30" | 25U | 48" | 20" | ACRYLIC |
| SWING OUT WALL MOUNT CABINET (NO EXTENDER) - WHITE |
|||||
| PART NUMBER |
WIDTH | RMU | HEIGHT | DEPTH | DOOR |
| RFM-2425-WM-20-W
|
24" | 12U | 25" | 20" | ACRYLIC |
| RFM-2436-WM-20-W
|
24" | 18U | 36" | 20" | ACRYLIC |
| RFM-2448-WM-20-W
|
24" | 25U | 48" | 20" | ACRYLIC |
| RFM-3025-WM-20-W
|
30" | 12U | 25" | 20" | ACRYLIC |
| RFM-3036-WM-20-W
|
30" | 18U | 36" | 20" | ACRYLIC |
| RFM-3048-WM-20-W
|
30" | 25U | 48" | 20" | ACRYLIC |
Extender to attach to existing Swing out Wall Mount Cabinet.Colour is Black or White.
| EXTENDER ONLY (FOR SWING OUT WALL MOUNT CABINET) - BLACK |
|||||
| PART NUMBER |
WIDTH | RMU | HEIGHT | DEPTH | DOOR |
| RFM-2425-WM-6X-B
|
24" | 12U | 25" | 6" | N/A |
| RFM-2436-WM-6X-B
|
24" | 18U | 36" | 6" | N/A |
| RFM-2448-WM-6X-B
|
24" | 25U | 48" | 6" | N/A |
| RFM-3025-WM-6X-B
|
30" | 12U | 25" | 6" | N/A |
| RFM-3036-WM-6X-B
|
30" | 18U | 36" | 6" | N/A |
| RFM-3048-WM-6X-B
|
30" | 25U | 48" | 6" | N/A |
| EXTENDER ONLY (FOR SWING OUT WALL MOUNT CABINET) - WHITE |
|||||
| PART NUMBER |
WIDTH | RMU | HEIGHT | DEPTH | DOOR |
| RFM-2425-WM-6X-W
|
24" | 12U | 25" | 6" | N/A |
|
RFM-2436-WM-6X-W
|
24" | 18U | 36" | 6" | N/A |
| RFM-2448-WM-6X-W
|
24" | 25U | 48" | 6" | N/A |
| RFM-3025-WM-6X-W
|
30" | 12U | 25" | 6" | N/A |
| RFM-3036-WM-6X-W
|
30" | 18U | 36" | 6" | N/A |
| RFM-3048-WM-6X-W
|
30" | 25U | 48" | 6" | N/A |
OPTIONS FOR CABINETSEquipment Mounting Rail Kit
| PART NUMBER |
CABINET WIDTH |
HEIGHT (U) | COLOUR |
| RFM-2425-WM-MA | 24" | 12U | BLACK |
| RFM-2436-WM-MA | 24" | 18U | BLACK |
| RFM-2448-WM-MA | 24" | 25U | BLACK |
| RFM-3025-WM-MA | 30" | 12U | BLACK |
| RFM-3036-WM-MA | 30" | 18U | BLACK |
| RFM-3048-WM-MA | 30" | 25U | BLACK |
• Use with equipment that needs front and rear support
• Sold in pairs
• Tapped 10-32
Vertial Finger Style Cable Managers
| PART NUMBER |
CABINET WIDTH |
HEIGHT (U) |
COLOUR |
| RFM-25-VCM-F | 24" | 12U | BLACK |
| RFM-36-VCM-F | 24" | 18U | BLACK |
| RFM-48-VCM-F | 24" | 25U | BLACK |
| RFM-325-VCM-F | 30" | 12U | BLACK |
| RFM-336-VCM-F | 30" | 18U | BLACK |
| RFM-348-VCM-F | 30" | 25U | BLACK |
• Provides neat cable routing for premise cables
• Attaches to mounting angle with included hardware
• Adjustable front-to-rear
ACCESSORIES FOR CABINETSFinger Style Cable Managers - Horizontal
| PART NUMBER |
DEPTH | RMU (U) | COLOUR |
|
RFM2-191-HCM-F
|
4.38 | 1U | BLACK |
|
RFM2-192-HCM-F
|
4.38 | 2U | BLACK |
|
RFM2-193-HCM-F
|
4.38 | 3U | BLACK |
• Provides neat cable routing for premise cables
• Finger style design
• Available in 1U, 2U, and 3U heights
Cable Managers - Horizontal
| PART NUMBER |
DEPTH |
|
RFM-0U-HCM-19
|
3.00 |
|
RFM-0U-HCM-19-5
|
5.00 |
Manage all of your network cabling neatly, regardless of cable volumes. These horizontal
managers are available in 3" and 5" depths.
Product Resources
[PDF] Product Data Sheet:
[DOWNLOAD]Rack Shelf: Single Sided, Fixed
| PART NUMBER |
DEPTH |
LOAD CAPACITY |
|
RFM-1909-RFS
|
9.00 |
100LBS |
|
RFM-1912-RFS
|
12.00 |
100LBS |
|
RFM-1915-RFS
|
15.00 |
100LBS |
|
RFM-1921-RFS
|
21.00 |
100LBS |
Shelf Fits: Cabinets and Racks. 19" Rack Mount.
Product Resources
[PDF] Product Data Sheet:
[DOWNLOAD]Power Bars / PDU - Horizontal
| PART NUMBER |
AMPS |
RECEPTACLES | PLUG |

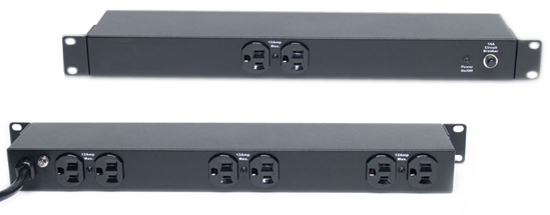

| RFM-19-PBH-8 |
45U |
(8) 5-15R | 5-15P |
• Straight plug style (5-15P)
• 115 VAC; 15 Amp
• 15'L (4.75M) power cord and circuit breaker
Exhaust Fans
| PART NUMBER |
FANS | AIRFLOW | PLUG |
| RFM-1-FAN |
1 | 110 CFM | 5-15P |
| RFM-2-FAN |
2 | 220 CFM | 5-15P |
RFM 4” Exhaust Fans:
• 115VAC 50/60HZ 24/22W (Standard per each unit)
(230VAC 50/60HZ available upon request)
• Plug Type: 5-15P
• Fits RFM Wall Mount Cabinets only ( 30”& 24” Width Cabinets,
and Low Profile Cabinets)
• Total Air Flow: 110 CFM (1-Fan), 220CFM (2-Fan)
Horizontal Grounding Bar
| PART NUMBER |
WIDTH | FITS |
| RFM-HGB-19 |
1.00 | 19" EIA |
Horizontal Grounding bars for both Wall Mount Cabinets and Wall Mount Racks.
Product Resources
PDF] Product Data Sheet:
