Cage Wall Systems



Product Resources:

• Product Data Sheet COMING SOON
• [PDF]  Assembly Instructions [DOWNLOAD]
• [PDF]  Cage Layout Worksheet [DOWNLOAD]
• [PDF]  Privacy Panel Measuring Guide [DOWNLOAD]

Product Description

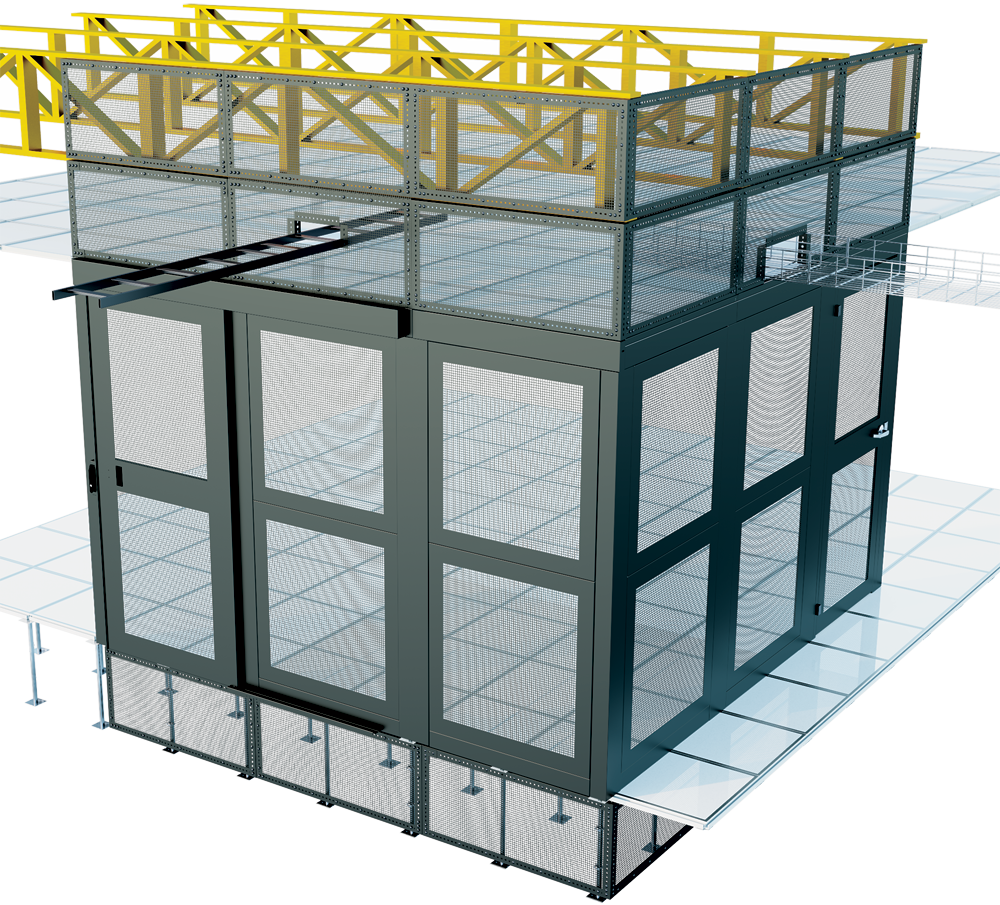

R.F. Mote cage systems provide an additional physical layer of security for your data and information system equipment.

Ideal for use in Data Center and Colocation sites; Cages allow groupings of cabinets to be segregated with access controlled by customer or security clearance levels.


 Cage Systems Features and Highlights

• Modular design
• Walls configurable in 1 foot (12") increments
• Most common heights: 96", 90", and 84"
• Alternate heights include: 93", 87", and 81"
• Panels perforated 3/8" square 16 gauge
• Hinged or Sliding doors
• Doors available with various locking options:
• keyed lock
• combination lock
• electronic lock
• Provisions in top valence to accept threaded rods extended to ceiling
• Bottom Filler is removable (from inside the cage only) to allow access to floor tile
• Build to Suit ( BTS ) cage panels for above cage wall and below floor
• CAD layout and bill of materials provided for each project
• Heavy gauge steel construction
• Durable textured black powder coat finish
• Custom sizes and colours available on request
Cage Walls




Perforated Wall Section - c/w 6" Valance
FITS 96" Cage 90" Cage 84" Cage
36"w RFM-CC-PWS-3696 RFM-CC-PWS-3690 RFM-CC-PWS-3684
48"w RFM-CC-PWS-4896 RFM-CC-PWS-4890 RFM-CC-PWS-4884
Perforated Wall Section - c/w 3" Valance
FITS 93" Cage 87" Cage 81" Cage
36"w RFM-CC-PWS-3693 RFM-CC-PWS-3687 RFM-CC-PWS-3681
48"w RFM-CC-PWS-4893 RFM-CC-PWS-4887 RFM-CC-PWS-4881


Notes:

• Includes: 2x Wall Panels, 1x Bottom Filler, 1x Valance, 1x Roof Bracket
• 96" H, 90"H and 84" H are most common sizes and c/w 6'H valances.
• Others are same height verticals c/w 3" valances
• Bottom Filler is removable (from inside the cage only) to allow access to floor tile
Cage Wall Joiners and Columns



Joiner Column 8'w
FITS 96" Cage 93" Cage 90" Cage 87" Cage 84" Cage 81" Cage
ALL RFM-CCJC-8-90-asy RFM-CCJC-8-90-asy RFM-CCJC-8-84-asy RFM-CCJC-8-84-asy RFM-CCJC-8-78-asy RFM-CCJC-8-78-asy

Note:

• Includes: 1x 8" Joining Column and 1x Joining Bracket(RFM-JB-36)
End Wall Column
FITS 96" Cage 93" Cage 90" Cage 87" Cage 84" Cage 81" Cage
ALL RFM-CC-EWC-90 RFM-CC-EWC-90 RFM-CC-EWC-84 RFM-CC-EWC-84 RFM-CC-EWC-78 RFM-CC-EWC-78

Note:

• Iincludes: 1x 4"w End Column and Wall Bracket (for attaching cage to building wall)
Corner Post Column
FITS 96" Cage 93" Cage 90" Cage 87" Cage 84" Cage 81" Cage
ALL RFM-CC-CP-90 RFM-CC-CP-90 RFM-CC-CP-84 RFM-CC-CP-84 RFM-CC-CP-78 RFM-CC-CP-78

Note:

• Includes: 1x 4" x 6" Corner Post Column
T-Wall Bracket Kit
FITS 96" Cage 93" Cage 90" Cage 87" Cage 84" Cage 81" Cage
ALL RFM-CC-CCPB RFM-CC-CCPB RFM-CC-CCPB RFM-CC-CCPB RFM-CC-CCPB RFM-CC-CCPB

Note:

• Required when cage walls joint at a 'T'
Cage Doors - Hinged




Hinged Cage Doors - for 35.5" opening
FITS 96" Cage 90" Cage 84" Cage
RH RFM-CC-HD-369693-V4-RH RFM-CC-HD-3690-V4-RH RFM-CC-HD-3684-V4-RH
LH RFM-CC-HD-369693-V4-LH RFM-CC-HD-3690-V4-LH RFM-CC-HD-3684-V4-LH

Hinged Cage Doors - for 35.5" opening
FITS 93" Cage 87" Cage 81" Cage
RH RFM-CC-HD-3693-V4-RH RFM-CC-HD-3687-V4-RH RFM-CC-HD-3681-V4-RH
LH RFM-CC-HD-3693-V4-LH RFM-CC-HD-3687-V4-LH RFM-CC-HD-3681-V4-LH

Notes:

• 35.5" opening doors require 4' of wall space
• Hinged doors for 96" H cage are 93" tall which allows for 48U cabinet clearance
• Key Lock includes: electronic strike, storeroom handle, valence, and r brkt
• Door assembly Includes: door, valence and roof bracket
• Door is Key lockable storeroom lever set, electronic strike
Hinged Cage Doors - for 47.5" opening
FITS 96" Cage 90" Cage 84" Cage
RH RFM-CC-HD-489693-V4-RH RFM-CC-HD-4890-V4-RH RFM-CC-HD-4884-V4-RH
LH RFM-CC-HD-489693-V4-RH RFM-CC-HD-4890-V4-LH RFM-CC-HD-4884-V4-LH

Hinged Cage Doors - for 47.5" opening
FITS 93" Cage 87" Cage 81" Cage
RH RFM-CC-HD-4893-V4-RH RFM-CC-HD-4887-V4-RH RFM-CC-HD-4881-V4-RH
LH RFM-CC-HD-4893-V4-LH RFM-CC-HD-4887-V4-LH RFM-CC-HD-4881-V4-LH

Notes:

• 47.5" opening doors require 5' of wall space
• Hinged doors for 96" H cage are 93" tall which allows for 48U cabinet clearance
• Key Lock includes: electronic strike, storeroom handle, valence, and r brkt
• Door assembly Includes: door, valence and roof bracket
• Door is Key lockable storeroom lever set, electronic strike
Cage Door Closers (Optional)
Fits 96" Cage 93" Cage 90" Cage 87" Cage 84" Cage 81" Cage
ALL RFM-CC-HD-CLOSER RFM-CC-HD-CLOSER RFM-CC-HD-CLOSER RFM-CC-HD-CLOSER RFM-CC-HD-CLOSER RFM-CC-HD-CLOSER

Additional Notes:

• All hinged doors c/w storeroom lever sets and electronic strikes
  (strikes can be connected for electronic access or left in fail secure mode with the leverset acting as the lock)
• All hinged doors require columns
• All hinged doors swing out
Cage Door (Hinged Door Features)




CAGE DOORS (HINGED DOOR FEATURES)
ITEM PART DESCRIPTION
Storeroom Leverset Storeroom leverset handle that is key locked from the outside and does not lock on the inside ( emergency egress)
Electronic Strike Customer has the option of using for E access or can set it to fail secure and use the lever handle key
Automatic Door Closer Customer has the option of purchasing an automatic door closer to prevent doors from being left open

Notes:

•
Cage Doors - Sliding



Sliding Cage Doors - Mid Wall: 38" Opening
Fits 96" Cage 93" Cage 90" Cage 87" Cage 84" Cage 81" Cage
Mid-RH RFM-CC-SD-3896-RH-V3-ASY RFM-CC-SD-3893-RH-V3-ASY RFM-CC-SD-3890-RH-V3-ASY RFM-CC-SD-3887-RH-V3-ASY RFM-CC-SD-3884-RH-V3-ASY RFM-CC-SD-3881-RH-V3-ASY
Mid-LH RFM-CC-SD-3896-LH-V3-ASY RFM-CC-SD-3893-LH-V3-ASY RFM-CC-SD-3890-LH-V3-ASY RFM-CC-SD-3887-LH-V3-ASY RFM-CC-SD-3884-LH-V3-ASY RFM-CC-SD-3881-LH-V3-ASY

Notes:

• For Mid-Wall installations
• Door track and rolling mechanism requires 8' of wall space
• Includes: 2x Valances, 2x Columns, 2x Wall Panels, 1x Bottom Filler, 2x Roof Brackets, 2x Joining Brackets
• Bottom Filler is removable (from inside the cage only) to allow access to floor tile
Sliding Cage Doors - End Wall: 37.5" Opening
Fits 96" Cage 93" Cage 90" Cage 87" Cage 84" Cage 81" Cage
End-RH RFM-CC-SD-3896-RH-V3-END-ASY RFM-CC-SD-3893-RH-V3-END-ASY RFM-CC-SD-3890-RH-V3-END-ASY RFM-CC-SD-3887-RH-V3-END-ASY RFM-CC-SD-3884-RH-V3-END-ASY RFM-CC-SD-3881-RH-V3-END-ASY
End-LH RFM-CC-SD-3896-LH-V3-END-ASY RFM-CC-SD-3893-LH-V3-END-ASY RFM-CC-SD-3890-LH-V3-END-ASY RFM-CC-SD-3887-LH-V3-END-ASY RFM-CC-SD-3884-LH-V3-END-ASY RFM-CC-SD-3881-LH-V3-END-ASY

Notes:

• For End-Wall installations
• Door track and rolling mechanism requires 8' of wall space
• Includes: 2x Valances, 2x Columns, 2x Wall Panels, 1x Bottom Filler, 2x Roof Brackets, 2x Joining Brackets, 1x Wall Bracket
• Bottom Filler is removable (from inside the cage only) to allow access to floor tile
Sliding Cage Doors - Corner Wall: 38" Opening
Fits 96" Cage 93" Cage 90" Cage 87" Cage 84" Cage 81" Cage
Corner
RH		 RFM-CC-SD-3896-RH-V3-COR-ASY RFM-CC-SD-3893-RH-V3-COR-ASY RFM-CC-SD-3890-RH-V3-COR-ASY RFM-CC-SD-3887-RH-V3-COR-ASY RFM-CC-SD-3884-RH-V3-COR-ASY RFM-CC-SD-3881-RH-V3-COR-ASY
Corner
LH 		RFM-CC-SD-3896-LH-V3-COR-ASY RFM-CC-SD-3893-LH-V3-COR-ASY RFM-CC-SD-3890-LH-V3-COR-ASY RFM-CC-SD-3887-LH-V3-COR-ASY RFM-CC-SD-3884-LH-V3-COR-ASY RFM-CC-SD-3881-LH-V3-COR-ASY

Notes:

• For Corner-Wall installations
• Door track and rolling mechanism requires 8' of wall space
• Includes: 2x Valances, 1x Column, 1x Corner Column, 2x Wall Panels, 1x Bottom Filler, 2x Roof Brackets, 1x Joining Bracket
• Bottom Filler is removable (from inside the cage only) to allow access to floor tile

Additional Notes (All Sliding Doors):

• Right hand, left hand available
• Electronic locking option
• Bottom Filler is removable (from inside the cage only) to allow access to floor tile

Cage Privacy Panels




Cage Privacy Panels: 4FT (48") Wide
Fits 96" Cage 93" Cage 90" Cage 87" Cage 84" Cage 81" Cage
48"w RFM-CC-WP-BP-4043 RFM-CC-WP-BP-4043 RFM-CC-WP-BP-4040 RFM-CC-WP-BP-4040 RFM-CC-WP-BP-4037 RFM-CC-WP-BP-4037
Cage Privacy Panels: 3FT (36") Wide
Fits 96" Cage 93" Cage 90" Cage 87" Cage 84" Cage 81" Cage
36"w RFM-CC-WP-BP-2843 RFM-CC-WP-BP-2843 RFM-CC-WP-BP-2840 RFM-CC-WP-BP-2840 RFM-CC-WP-BP-2837 RFM-CC-WP-BP-2837
Cage Door (Sliding or Hinged) Privacy Panels: c/w 2 Privacy Panels
Fits 96" Cage 93" Cage 90" Cage 87" Cage 84" Cage 81" Cage
Doors RFM-CC-WP-BP-DOOR RFM-CC-WP-BP-DOOR RFM-CC-WP-BP-DOOR RFM-CC-WP-BP-DOOR RFM-CC-WP-BP-DOOR RFM-CC-WP-BP-DOOR
Notes:

• Privacy Panels cover perforated area of wall panels and doors panel to restrict visibiltiy through cage wall
• Attaches directly onto existing perforated panel(s) and can easily be removed as per tenant requirements
Build To Suit (BTS) Perforated Cage Panels

BTS: Full panel and Joiner Angle




BTS: Above Cage




BTS: Under Floor

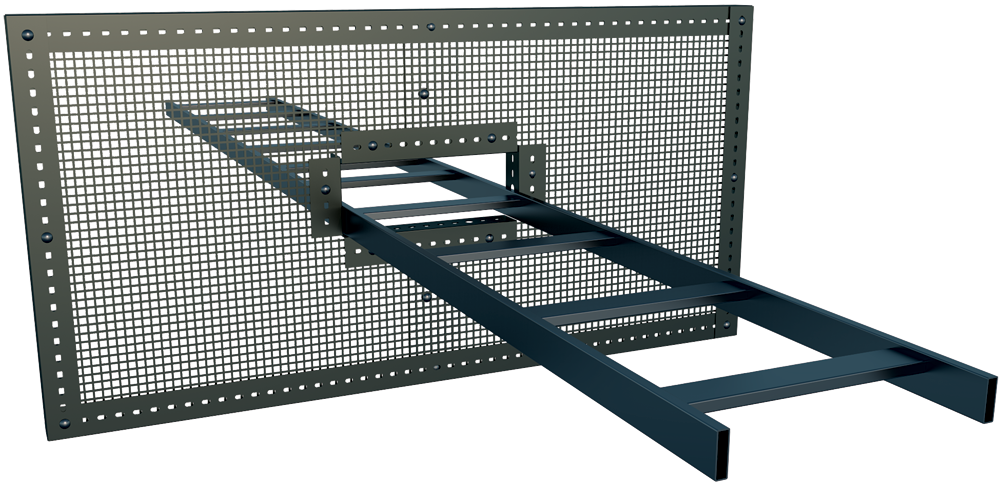

BTS: Securing around existing items

CAGE PERFORATED PANELS - FOR INSTALLATION ABOVE OR BELOW CAGE OPTIONS
DETAILED DESCRIPTION PART NUMBER
3/8"X3/8" SQ. MESH SHEET 4' X 8' X 16 GAUGE painted BLACK RFM-CC-MESH-4X8X16G
MESH JOINER ANGLE - 2"x2"x96" x 16G includes 20 carriage bolts and nuts per angle RFM-CC-2X2X96 16G ANGLE
U-BOLT FOR JOINING UNDER FLOOR MESH. (1 OR 2 EVERY 4 FEET DEPENDING ON HEIGHT) RFM-CC-U-BOLT

Notes:

• BTS Cage Panels can be installed above the main cage, or below the raised floor to provide a slab-to-slab security solution

• Materials supplied are: punched 96” (8’) 2”x2” angles and 48" (4’) X 96”(8’) perforated sheets

• Punched angles are used to join panels together and there are provisions to affix up to ½” threaded rods to tie to the panels to the ceiling

• BTS Angles each c/w hardware- qty 20 x ¼” carriage bolts, washers, and nuts. Once assembled, removal of the hardware requires
access to the inside of the cage area.

• Sheets and angles are cut to size on site and used to create framed panels sized to best suit the installation*
*on request - perforated sheets can be cut to size at factory

• When installed above the main cage, BTS cage panels are attached to the top valance of the cage and further supported by attaching them
to the drop ceiling grid, the underside of roof joists, or the roof itself. Alternately, the panels can be supported by using threaded rods hung
from the ceiling

• Upper panels can be installed in multiple levels for ease of installation. This provides increased flexibility when securing around items in
the upper level of the ceiling space that enter the caged area, such as duct work, cable tray, piping and conduits. Often, the first level of
BTS cage would span from top of cage to underside of roof joists and a second level would be installed from the joist to the roof

• BTS cage panels can be joined together and there are provisions to affix up to ½” threaded rods to tie to the panels to the ceiling

• When used underfloor, the angles can be attached to the concrete slab or the framework of the raised floor. Panels can be bolted together,
and optional U bolts can be used to tie panels to the raised floor support

• BTS Cage panels provide a slab-to-slab security solution while allowing the flexibility to be cut around items that enter the caged area
such as cable tray, duct work, piping and conduits
